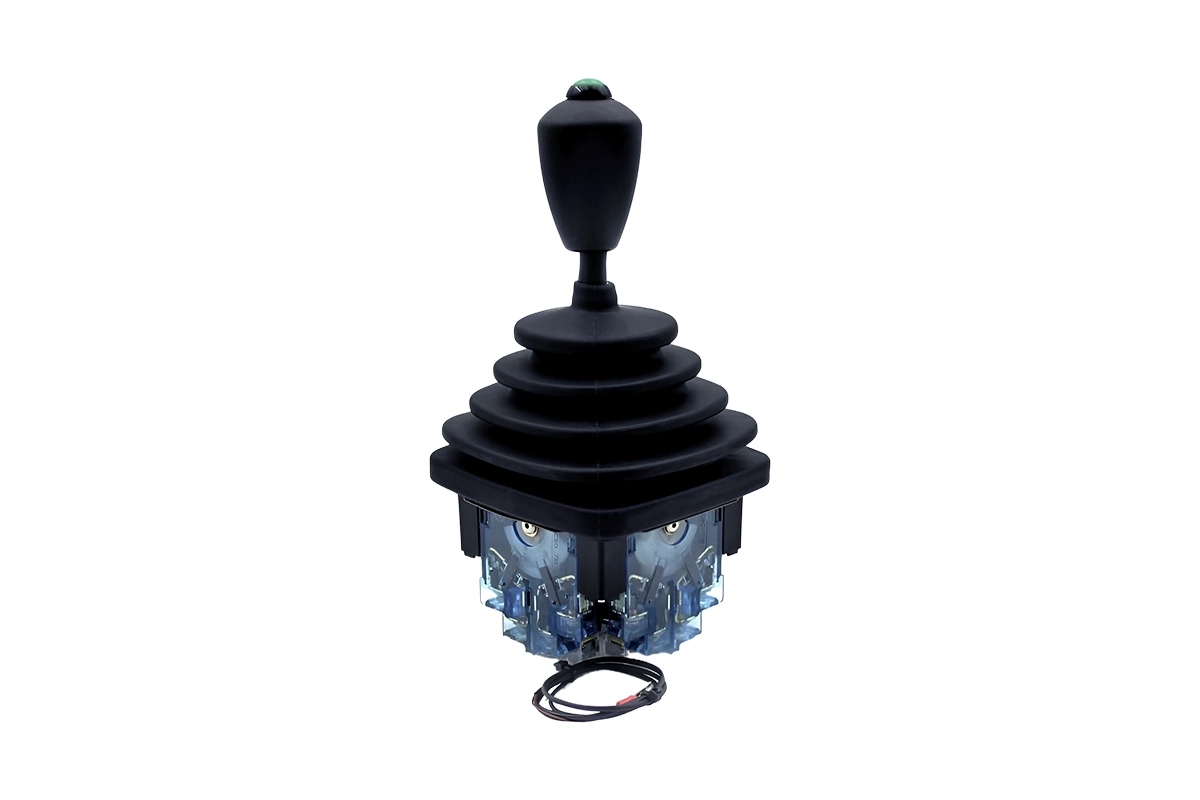

Crane control Joystick AT20: Leak-proof drive block, finger-safe 250V contacts. Optional deadman’s switch & encoder docking. 30+ years crane-proven reliability
Crane control Joystick AT20 has delivered reliable performance in extreme environments. Its patented leak-current-proof drive block features heat/cold-resistant insulation (-30°C to +80°C), protecting both mechanical components and users from electrical contact.
✔ Safety by Design
Finger-safe double contact elements (250V/10A) with positive locking
Flanged mounting ensures vibration-resistant operation
✔ Modular Flexibility
Optional integrated functions:
• Zero-position switch
• Horn contact
• Deadman’s switch
Supports 4 double contacts per axis for custom configurations
✔ Precision Adaptability
Interchangeable potentiometers or encoders via sliding coupling
Mechanical limiters for movement guidance
✔ Universal Deployment
Standard in cranes, control stations & portable consoles
30% lighter than comparable industrial joysticks
5M+ mechanical cycles proven in field testing
IP65 protection standard (IP67 optional)
