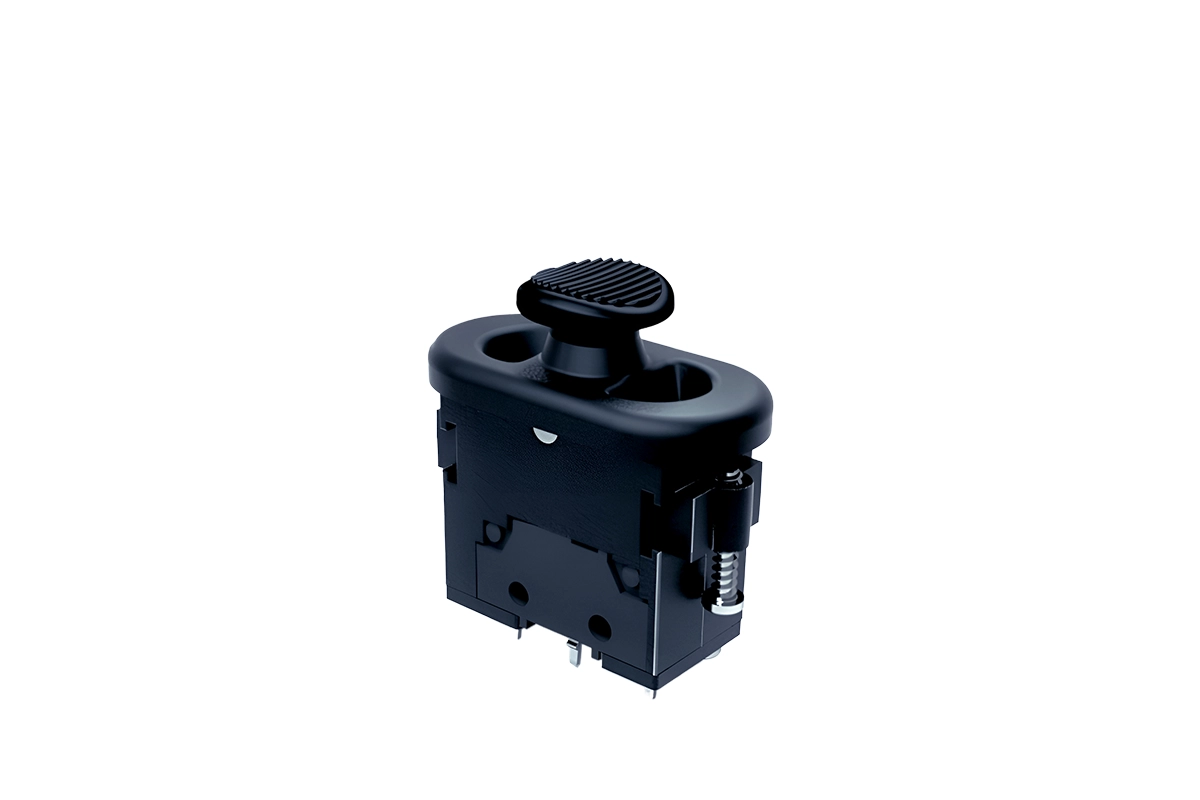

WK02 is a high-performance fingertip switch specifically designed for critical applications across various industries, including broadcasting equipment, security systems, automation technology, medical devices, and optical instruments. It combines durability and precision, utilizing a Hall-effect sensor to ensure reliable operation in demanding environments.
Featuring an operating angle of ±24° and a 5V DC power supply, the WK02 delivers precise tactile feedback while maintaining low power consumption (12mA). Its 5 million-cycle mechanical lifespan makes it ideal for high-frequency operations in broadcast systems, industrial automation, medical devices, security controls, and optical instrumentation. The Hall-effect sensor eliminates mechanical wear, providing bounce-free switching and resistance to dust, moisture, and vibration.
Available in both spring-return (momentary) and 3-position detent (latching) variants, the WK02 offers flexibility for diverse control needs. With an extended operating temperature range (-40°C to +70°C), it performs reliably in harsh indoor and outdoor settings.
Compact yet robust, the WK02 is designed for easy panel integration and can be customized for specialized applications. Whether used in surgical robotics, CNC machinery, or broadcast switchers, it ensures long-term accuracy and durability where conventional switches would fail.
Download
Click the button to download the PDF
Download PDF
Application
Applications
The WK02 is engineered for precision control in critical industrial and commercial environments, including:
- Broadcast & Media Equipment – Camera controls, switchers, and studio automation.
- Security Systems – Access control panels, alarm triggers, and surveillance systems.
- Industrial Automation – Machinery operation, robotic controls, and HMI interfaces.
- Medical Devices – Surgical equipment, diagnostic instruments, and patient monitoring systems.
- Optical & Measurement Instruments – Microscopes, laser alignment tools, and laboratory devices.
FAQs
Q1: What makes the WK02 suitable for harsh environments?
A: The WK02 features:
- Robust construction resistant to dust, moisture, and mechanical stress.
- Wide operating temperature range (-40°C to +70°C).
- Hall-effect sensing (no physical contacts), ensuring long-term reliability.
Q2: Can the WK02 be customized for different actuation modes?
A: Yes, it supports:
- Standard spring return (momentary operation).
- Optional 3-position detent (stable ON-OFF-ON switching).
Q3: What is the expected lifespan of the WK02?
A: Rated for 5 million mechanical cycles, thanks to its contactless design and high-quality materials.
Q4: Is the WK02 compatible with low-voltage systems?
A: Yes, it operates at 5V DC (12mA), making it suitable for embedded electronics and portable devices.
Q5: How does the Hall-effect sensor improve performance?
A: Benefits include:
- No contact bounce (clean signal output).
- Immunity to oxidation (unlike mechanical switches).
- High repeatability (±24° precise angular detection).
Q6: Are mounting options flexible?
A: The compact single-axis design allows for panel mounting or integration into custom assemblies.
